Face Recognition QR Code Swipe Card Reader Scanner VF102 for Access Control System

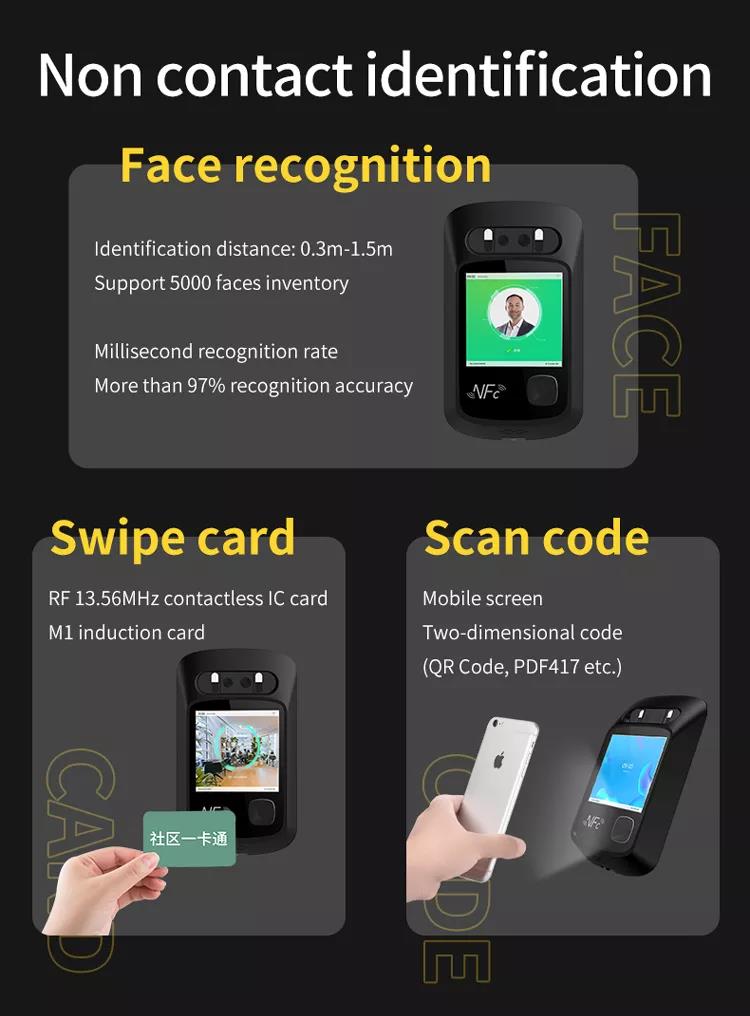

♦ Integrates face recognition, card swiping and QR code reading.

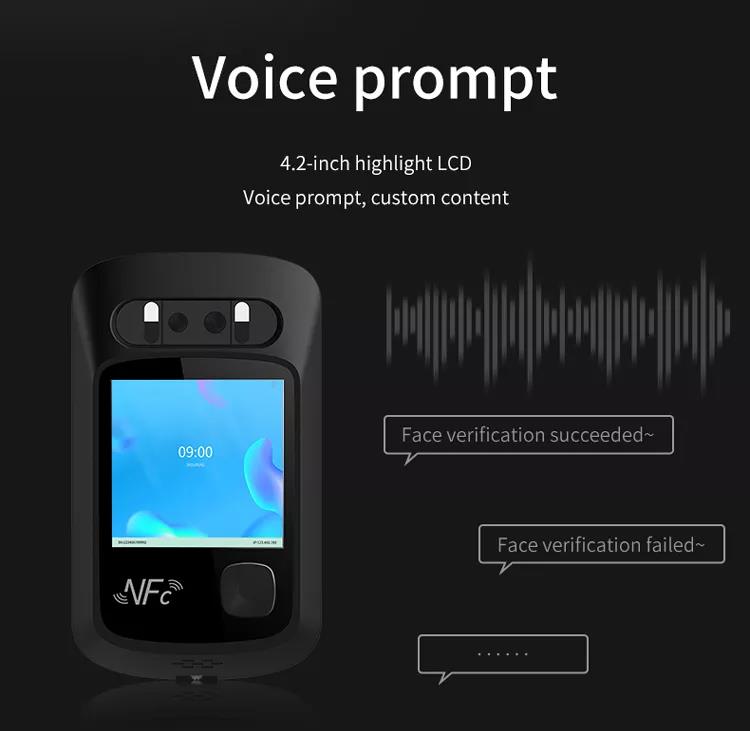

♦ 4.2-inch highlight LCD screen with human voice prompt.
♦ More than 97% recognition accuracy, millisecond recognition rate.
♦ Recognition distance 0.3m-1.5m, maximum support 5000 face library.

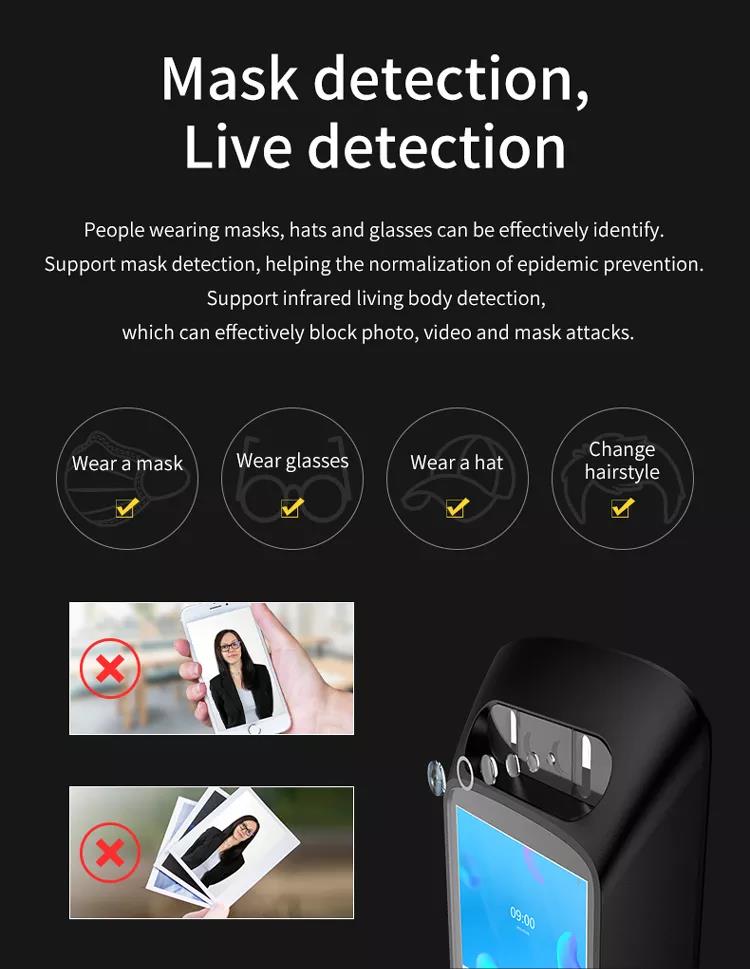

♦ Wearing masks, glasses and hats can be effectively identified, and mask detection is supported.
♦ Built-in silent living detection, which can effectively block photos, videos and mask attacks.
♦ access control solutions
♦ Turnstiles gate
♦ Time attendance
♦ Office Building
♦ University
♦ School an library
♦ Residential area
| System parameter | OS:Linux |
| Storage capacity:8GB | |
| Processor:ARM Cortex A7 MP2 1GHz | |
| Display screen | Size:4.2-inch LCD |
| Resolution ratio:720*672 | |
| Communication mode | Wired:1 10 / 100M adaptive network port |
| Wireless:2.4G WiFi | |
| 1 RS485 port | |
| 1 Wiegand26/Wiegand34 port | |
| Physical interface | 1 Anti disassembly switch |
| Relay:30V1A | |
| 2 Alarm signal input interface | |
| Power supply | Supply voltage:9~24V(DC)(12V power supply is recommended) |
| Power consumption:Max.6W | |
| RGB camera | |
| Field angle:D=70.3° H=63° V=38° | |
| Aperture:2.0 | |
| Resolution ratio:1920*1080 | |
| Focal length:4.35MM | |
| Infrared camera | Field angle D=68° H=60° V=37° |
| Aperture 2.2 | |
| Resolution ratio 1616*1232 | |
| Focal length 2.35MM | |
| Speaker | Built in 8 Ω 2W speaker |
| Material | Fireproof ABS + organic glass |
| Working temperature and humidity | Working temperature -20 ℃~55℃ |
| Working humidity 10%~90%(No condensation) | |
| IP Grade | Electrostatic protection:Contact 8KV, air 10KV |
| Protection grade:IP54 |
