1D 2D QR Code Scanner MU86 IC NFC Access Control Card Reader RS485 Relay Interface
MU86 QR/barcode reader was a specially designed product for access control, which has various output interface, support wiegand and RS485, can connect to the traditional access controller. It also support Ethernet output interface, with built-in relay module.
♦ Scan QR/barcode & reading card all in one.
♦ Fast recognition,high accuracy, can reach 0.1s the fastest.
♦ Easy to operate, more easy to debug with the humanize tool.
♦ Built-in relay module, can connect to the access system directly
♦ Lockers, access control solutions
♦ Turnstiles,Metro, Subway
♦ Mobile coupons, tickets
♦ Ticket checking machine
♦ Microcontroller development
♦ Self-service terminals
♦ Mobile payment barcode scanning
| Output interface | RS485, wiegand, Ethernet, relay |
| Indicating method | Red,green, blue, white indication light |
| Beep | |
| Imaging sensor | 300,000 pixel CMOS sensor |
| Max resolution | 640*480 |
| OS | Windows（xp.7.8.10） |
| Installation method | Wall mounted type |

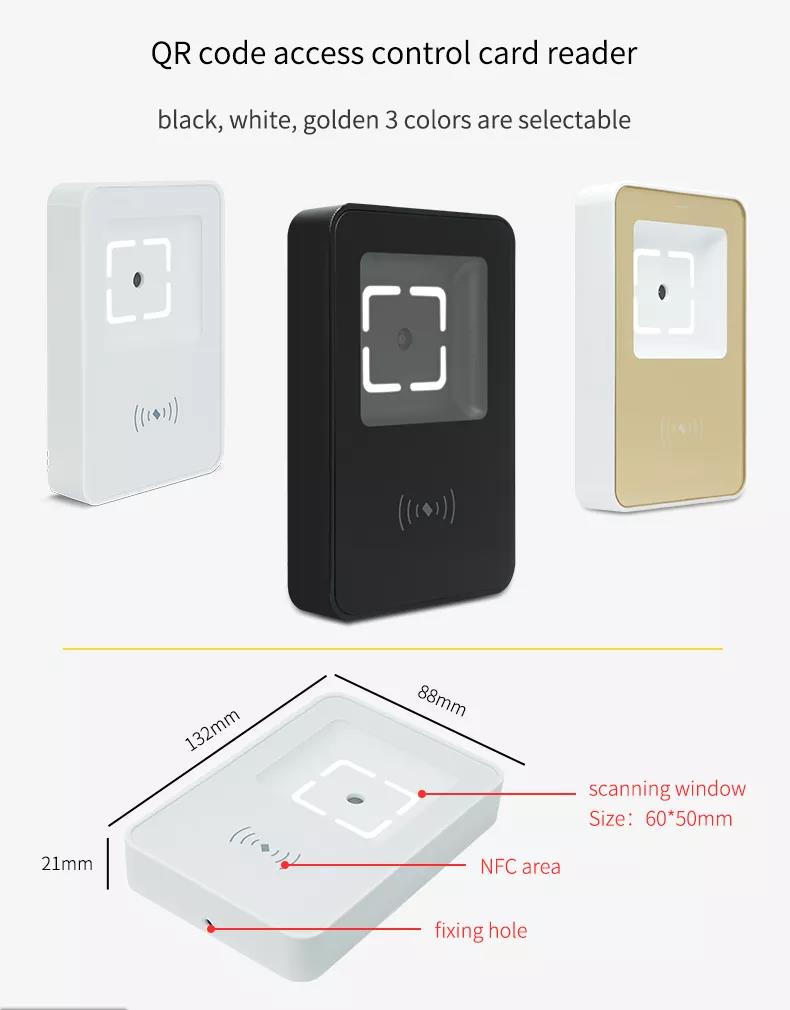

| Product size | 132*88*21mm |
| Recognition window size | 60mm*56mm |
| Product material | Imported PC & tempered glass |
| Symbologies | QR, PDF417, CODE39, CODE93, CODE128, ISBN10,ITF,EAN13 etc |
| Supported decoding | Mobile phone screen/ printed barcodes |
| DOF | 15.9mm~75.68mm(QRCODE 15mil) |
| Reading accuracy | ≥7mil |
| Reading speed | 100ms per time(average),support reading continuously |
| Reading direction | Tilt±59.5° rotation±360° deflection±63.5°（70 character 15milQR） |
| FOV | Horizontal 72.4° vertical 54.2° FOV 84.8°（70 character 15milQR） |
| Type | ISO 14443A,ISO 14443B protocol |
| Operation method | read UID, read the sector of M1 card |
| RF | 13.56mhz |
| Distance | ＜5cm |
