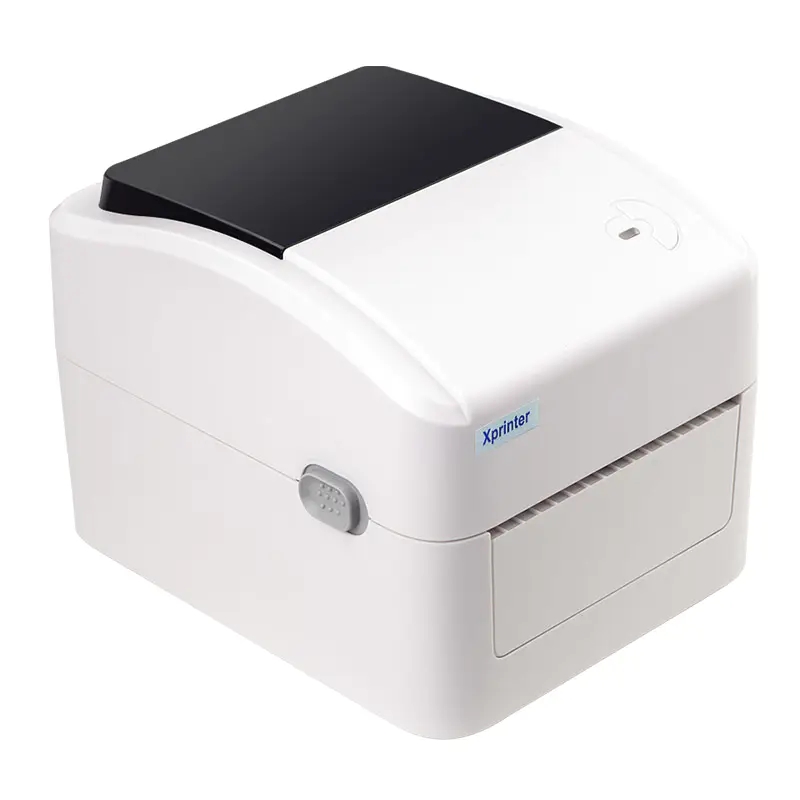

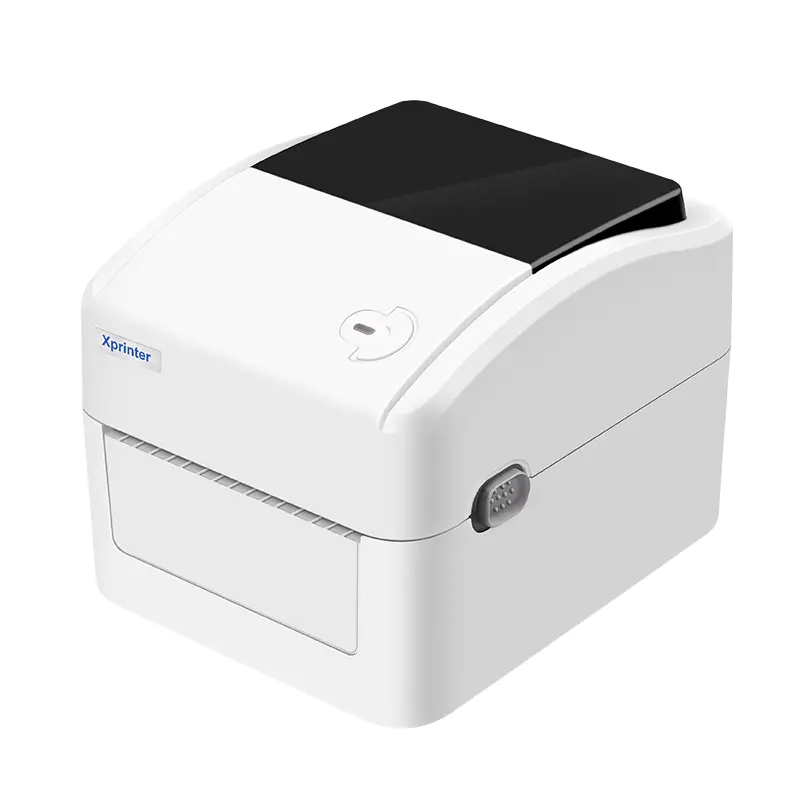

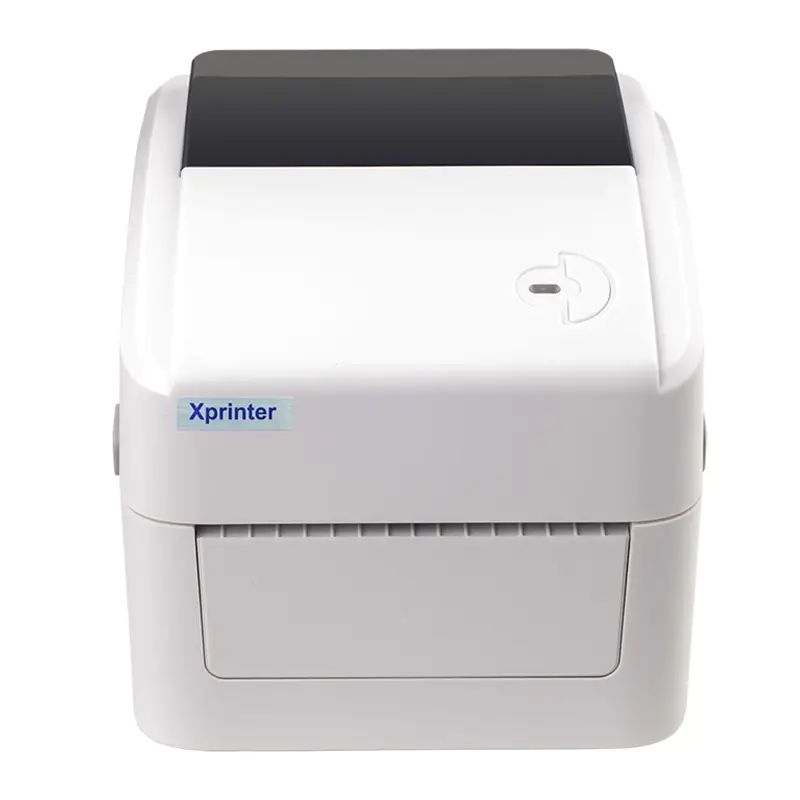

Xprinter XP-420B Thermal Barcode Label Printer Optional Bluetooth WIFI
High speed printing:152 mm(6 inches)/s. 2. 203 dpi and 300 dpi resolution models.
8MB SDRAM,8 MB Flash.
High quality double-walled clamshell design.
Printhead temperature intelligent control system.
Make sure printer output stably.
Warehouse Mini Inventory Labeling
Convenience Store Shelf Label Printing
Office File & Asset Labeling
Express Envelope Address Labeling
Handcrafts & Small Batch Product Labeling
| Resolution | 203DPI |
| Print Method | Direct Thermal |
| Memory | 8 MB RAM / 8 MB Flash |
| Max.Print Width | 4.25 in./108 mm |
| Max.Print Speed | Up to 6 ips (152 mm/s) |
| Media Sensors | Fixed Black Mark Sensor / Fixed Gap Sensor |
| Emulation | TSPL, ZPL, EPL, DPL, ESC/POS Optional |
| Interface | USB, USB+Ethernet, Optional Wireless Connectivity: Bluetooth / Wi-Fi |
| Others | Optional RTC, Optional SD Card Slot |
| Media and Ribbon Characteristics | |
| Media Length | 0.39 in.~70 in.(10 mm ~ 1778 mm) |
| Media Width | 1 in.~4.56 in.(25.4 mm ~ 116 mm) |
| Media Roll Size | 4 in./101.6 mm Outer Diameter, Core Inner Diameter: 1 in. (25.4 mm) |
| Media Thickness | 0.0023 in.(0.06 mm) Min.;0.01 in.(0.254 mm) Max. |
| Media Types | Continuous, Gap, Black mark, Fan-fold, Perforated Media |
| Environment Condition | |
| Operating Temp. | 5~40℃(41~104°F) |
| Storage Temp. | -40~60℃(-40~140°F) |
| Operating Humidity | 25 ~ 85% Non-Condensing |
| Storage Humidity | 10 ~ 90% Non-Condensing |
| Fonts/Graphics/Symbologies | |
| 1D Bar Codes | Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar,Interleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E,EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11 |
| 2D Bar Codes | PDF-417, Maxicode, DataMatrix, QR code, Aztec |
| Fonts and Graphics | Font 0 ~ Font 8 |
| Software | |
| Driver | Windows /Linux /Mac / Android / Chrome OS |
| SDK | Windows/Linux / Android /iOS |
| Software | Bartender UltraLite / Mobile Label Design App |
| Accessories | |
| Standard Accessories | Power Adapter, Power Cord, USB Cable, User Manual, CD, Label spindle, Fixing tab |
| Factory Installed Options | Bluetooth Module, Wi-Fi Module, Peel-off Module, Cutter Module |
| User Options | 8″ External Paper Roll Holder |
| Product Warranty | |
| Printhead life | The earlier of 30 km usage or 1 year |
| Platen roller life | The earlier of 30 km usage or 1 year |
| Printer Warranty | 1 Year |
| Physical Characteristics | |
| Dimension | 215 mm x 178 mm x 155 mm(D*W*H) |
| Weight | 1.35 Kg |
