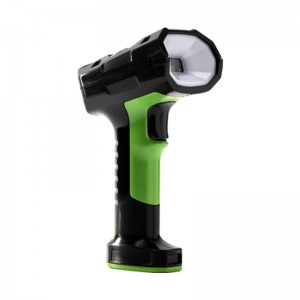

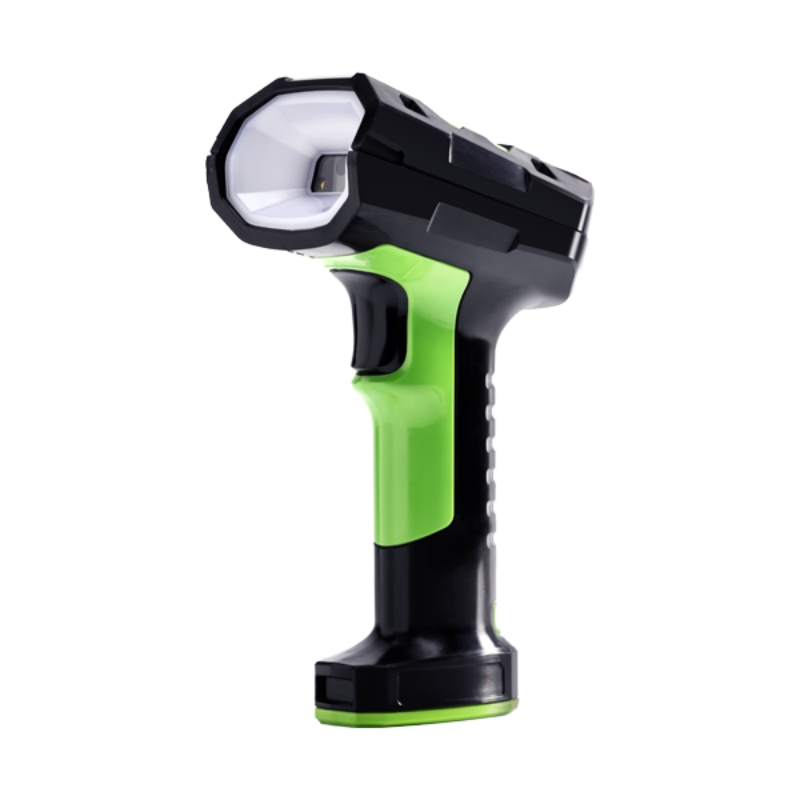

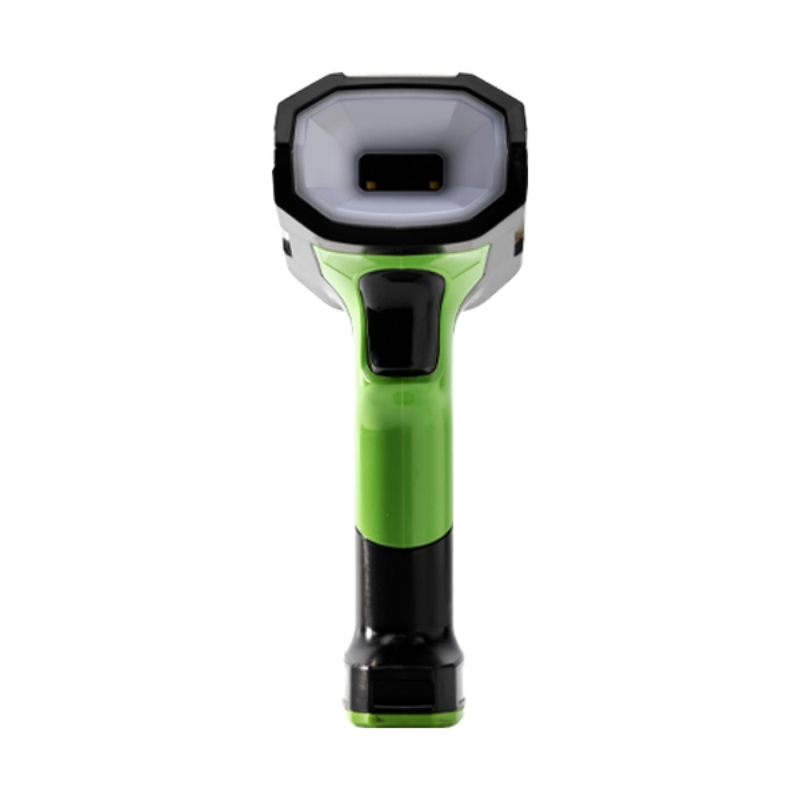

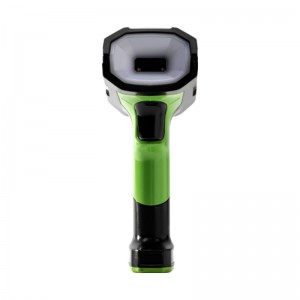

HPRT HN-8208SR 1d 2d Handheld Industrial Laser Barcode Scanner Reader Machine
IP65 protection, 2.4-meter drop resistance
High-protection industrial structure with a full soft-rubber wrapping design for effective device safeguarding. Rated IP65 with 2.4-meter drop resistance, making the product durable and highly resilient.
Laser crosshair aiming
Quick and precise barcode reading with laser aiming
Multi-spectrum illumination technology
Features multi-spectral technology with intelligent switching between three different light sources, enabling adaptable illumination for different scanning scenarios.
Industrial DPM decoding algorithm
Provides powerful decoding for direct part marking (DPM) barcodes like laser engraving and dot peening
Tactile vibration feedback
Feedback after successful scans, suitable for noisy or quiet environments
Automotive Manufacturing Component Traceability
Aerospace & Defense Part Identification
Electronics Production Component Scanning
Medical Device Tracking & Compliance
Heavy Machinery Part Management
| Scanning Parameters |
Image Sensor | CMOS |
| Pixels | 1280*1080 | |
| Illumination | White, red and blue fill light LEDs | |
| Focus | Laser Cross Mark | |
| Codes Identification System |
2D:PDF417,QR Code,Data Matrix,Maxicode etc. | |
| 1D:Code128,UCC/EAN-1 28,AIM128,EAN-8,EAN-1 3,ISBN/ISSN,UPC-E,UPCA,Interleaved 2 of 5 | ||
| ITF-6,ITF-4,Matrix 2 of 5,Industrial25,Standard25,Code39,Codabar,Code93,Code11,Plessey | ||
| MSI-Plessey, RSS-14, RSS-Limited, RSS-Expand etc. | ||
| Recognition Accuracy | ≥3 mil | |
| Typical Reading Depth | 3 mil Code 39: 25mm-120mm | |
| 13 mil EAN-13: 20mm-220mm | ||
| 5 mil PDF 417: 20mm-120mm | ||
| 10 mil DM: 20mm-180mm | ||
| 20 mil QR: 10mm-300mm | ||
| Barcode Sensitivity | Incline (pitch) ±60°;spin (tilt) 360°; deflect (skew) ±60° | |
| Angle of View | Horizontally 40°; vertically 30° | |
| Symbolic Contrast | ≥15% | |
| Mechanical & Electrical Parameters |
Exterior Dimensions | 108.9 (D)*77(W)*200.9 (H) |
| Weight | 320g | |
| Interface Type | RJ-45 Crystal Head | |
| Exterior Material | PC+ABS+TPU | |
| Reminder Method | Buzzers, LED Indicator Light | |
| System Interface | RS-232 Serial Port, USB Keyboard, USB Virtual Serial Port | |
| Trigger Method | Keystroke Recognition, Induction Recognition, Progression Recognition | |
| Operating Voltage | 5 VDC±10% | |
| Operating Current | Standby Current: 55mA; Operating Current: 210mA | |
| Environmental Parameters |
Operating Temperature | -30~50ºC |
| Storage Temperature | -40~70ºC | |
| Relative Humidity | 5%~95% (no-condensation) | |
| Drop Height | 2.4 m | |
| Protection Class | IP65 | |
| International Certification | CE FCC RoHS |
