2D Embedded Barcode Scanner Reader for Self-service Kiosk USB RS232 RJ45 Port
♦ Lockers, access control solutions
♦ Turnstiles,Metro, Subway
♦ Mobile coupons, tickets
♦ Ticket checking machine
♦ Microcontroller development
♦ Self-service terminals
♦ Mobile payment barcode scanning
| Working Voltage | 4.7v~15v |
| Working current | 150mA |
| Reading direction | 360 degree |
| Reading distance | 0-10cm |
| Reading speed | 70ms per time |
| Scanning feedback | Buzzer indication |
| Decoding mode | Image-based decoding engine |
| Imaging Sensor | 640*480 CMOS |
| Recognizable code size | 5-100mm |
| Wireless support | WIFI module can be added |
| Applied environment | Temp range-20°~70℃,Relative humidity 5%~95% |
| Output modes | USB analog keyboard,USB HID development board,RS232,TTL |
| Symbologies | QR code,Dmcode EAN-13,EAN-8,RSS_14,CODE_39,CODE_93,CODE_128,ITF,CODABAR,inverse code,image code |
| Development interfaces | USB-HID mode development,Serial communication development((provide C/C++,C#,Java,DELPHI SDK) |
| Compatible system | Windows series(XP,7/8/10),Android,Linux,Mac,etc. |
| Card Swiping support | NFC module can be added,Support ID card,NFC mobile phone,non-contact IC card,M1 proximity card |
| Recognizable radio frequency | ID card,Mifare_UltraLight,Mifare_One(S50),Mifare_One(S70),Mifare_Pro(X),Mifare_Desire. |

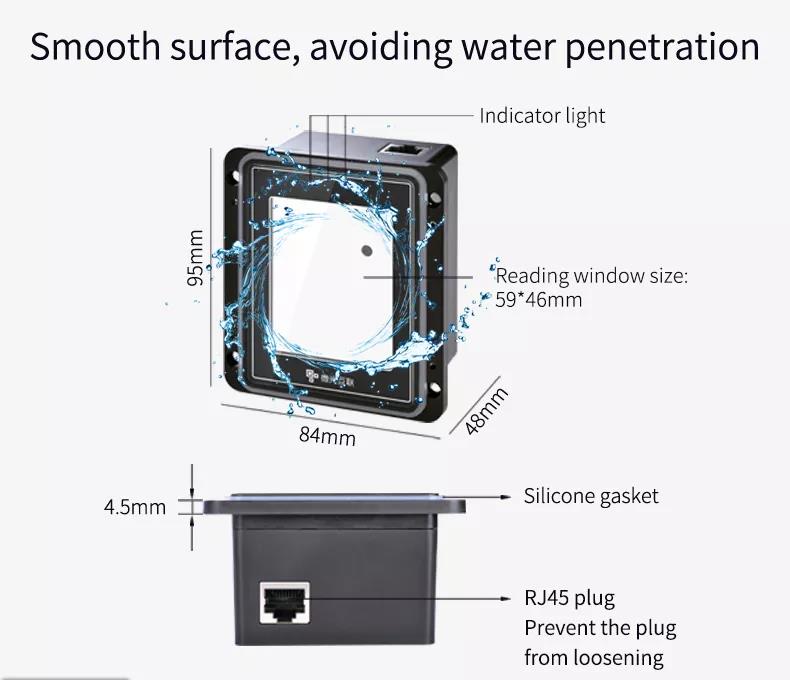

| Size | 95*84*48mm |
| Weight | 0.14kg |
| Material | PC+ABS |
| Interface | RJ45 |

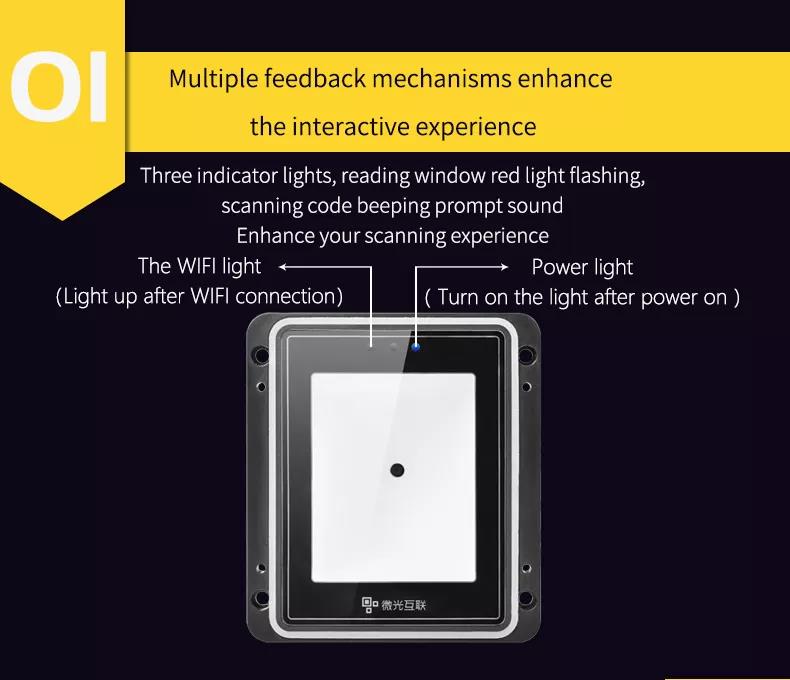

| Indication light | 3(supporting programming) |
| Scanning feature | Automatic |
| Power consumption | 0.75W |
| Recognition window | 59*46*3mm Tempered glass |
| Light source: | White and Red LED light(Switchable) |
